Drafting Services

Basic

LAUNCHING SOON

Single Page PDF

Examples:

  • Transcribing a hand-sketch with measurements to scale

  • Existing Floorplan

  • Floorplan with Emergency Exit Routes

Intermediate

LAUNCHING SOON

Four Page PDF Plan Set

Examples:

  • Floorplan with four different layouts (furniture, appliances, non load-bearing walls)

  • Floorplan with Wall Section, Plumbing, Electrical, and HVAC layouts.

Advanced

LAUNCHING SOON

Five or More Page PDF Plan Set

Examples:

  • Highly detailed plan sets or instructions

  • Existing and Proposed Site Plans

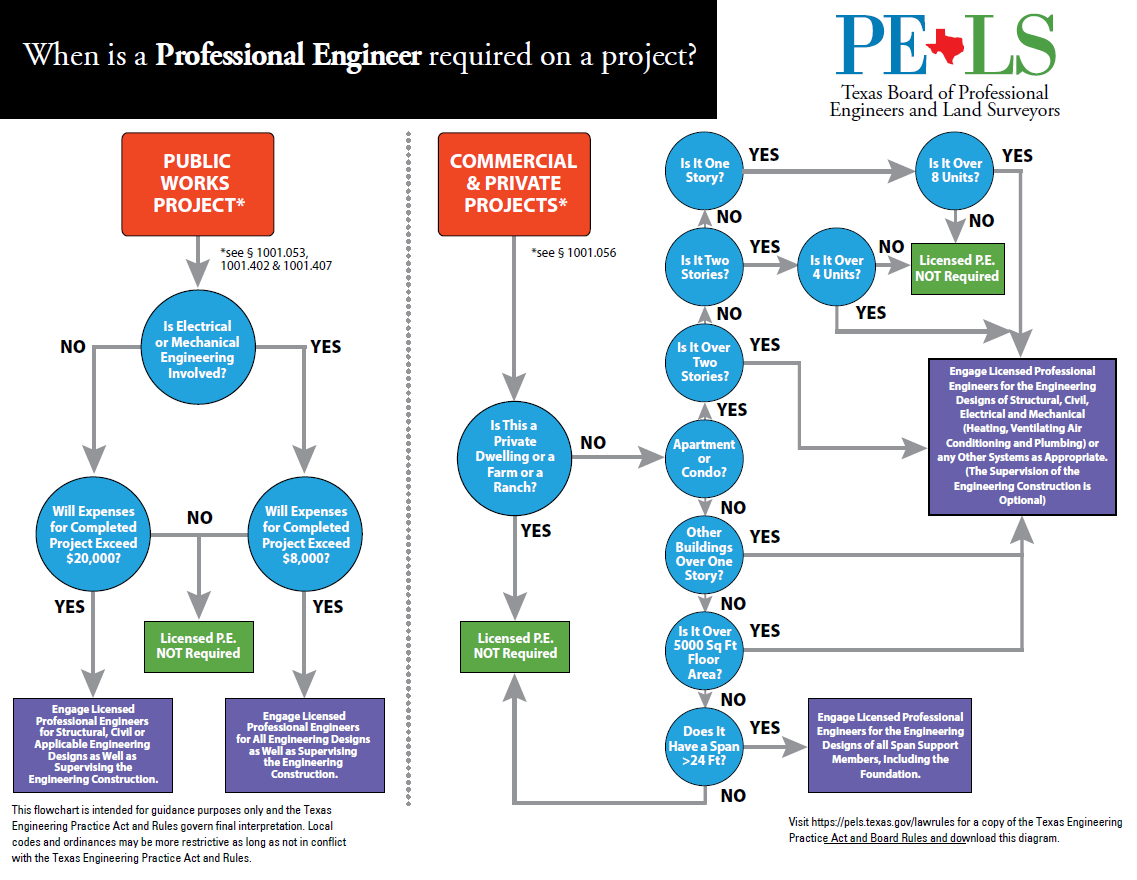

  • Plans that will be sealed by a Professional Engineer (see below)

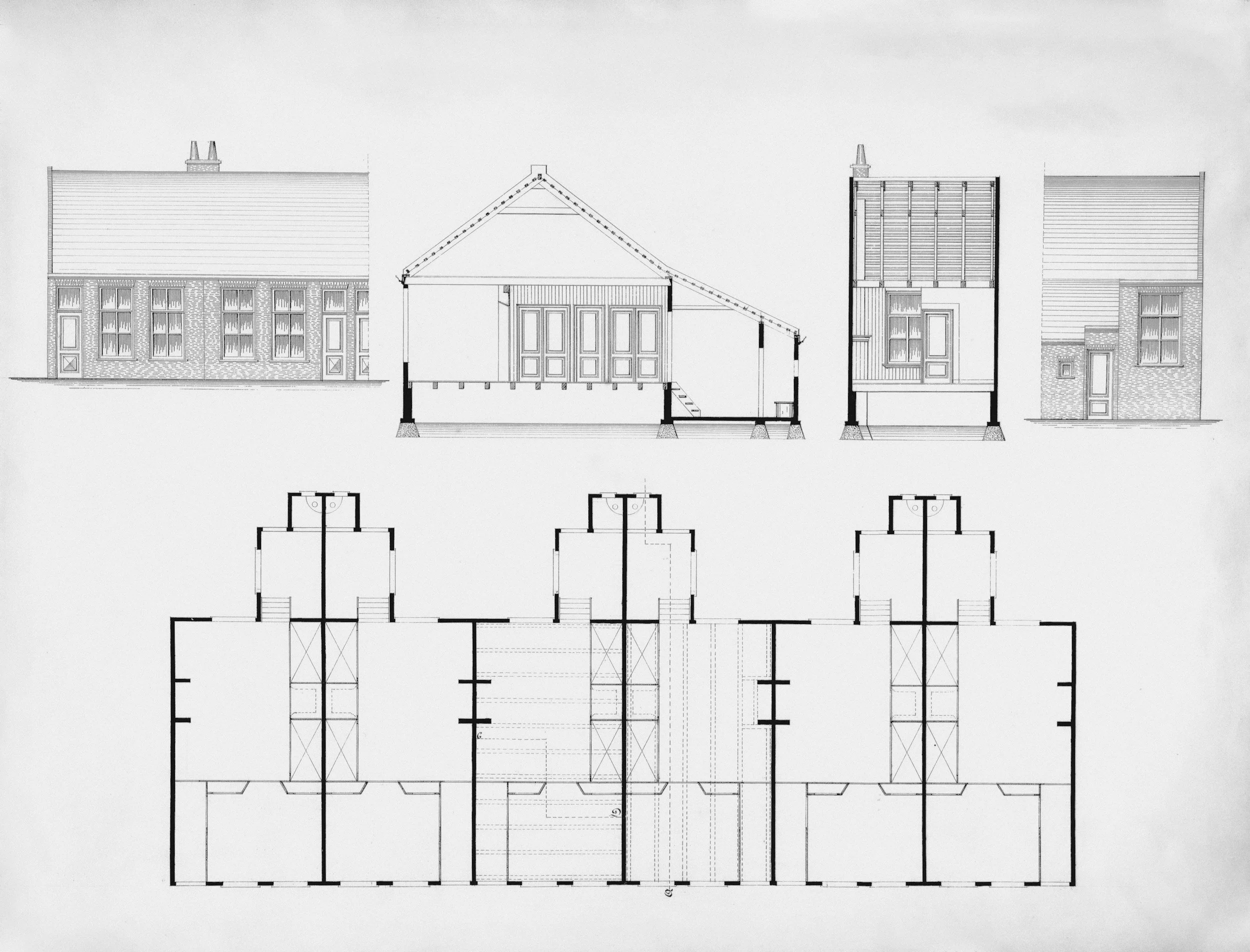

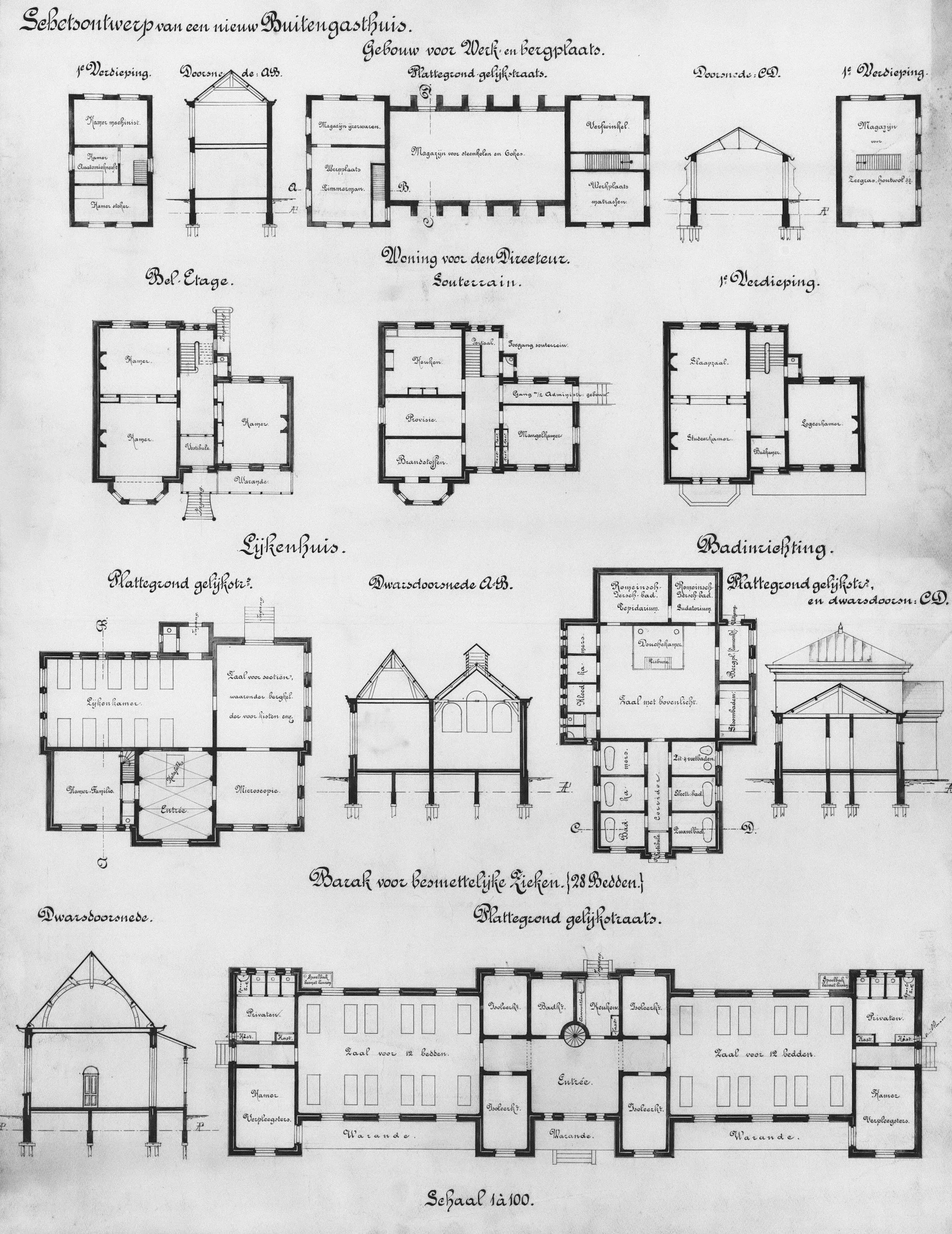

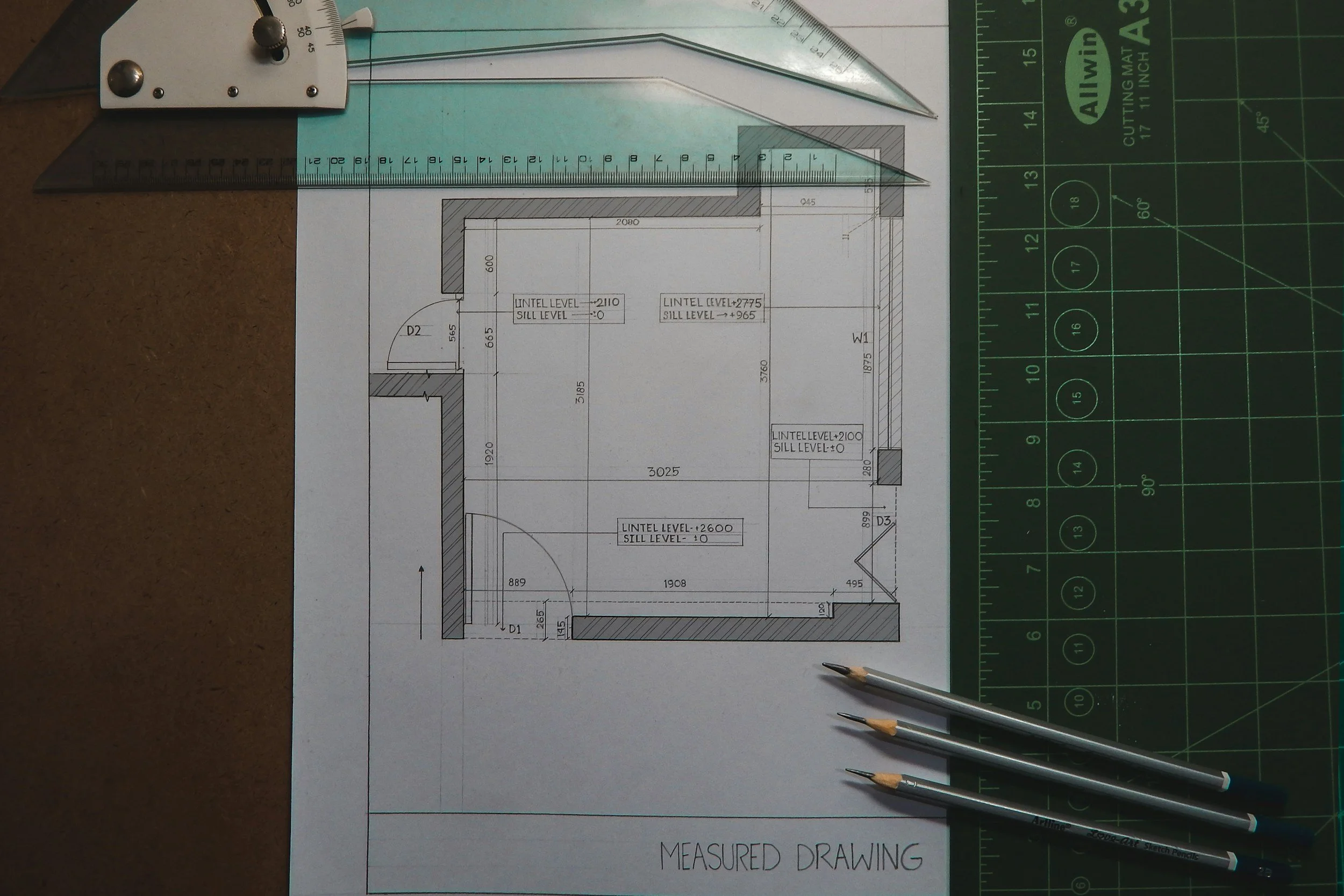

Examples
